New Silent Home Pod Study Room Sound Proof Booth For Children Reading Eco-friendly Home Pod Acoustic Sound Proof Pod-1
Specification
Product Description
Specification
Product Description
DIY options
1.Exterior color is optional
2.Banner text is optional
3.Extra cabinet for the wall mounted desk is optional
4.The color tone of LED can be chosen between 4000K and 6000K.
BLF-02 configurations
| Model | Techincal name | Specification |

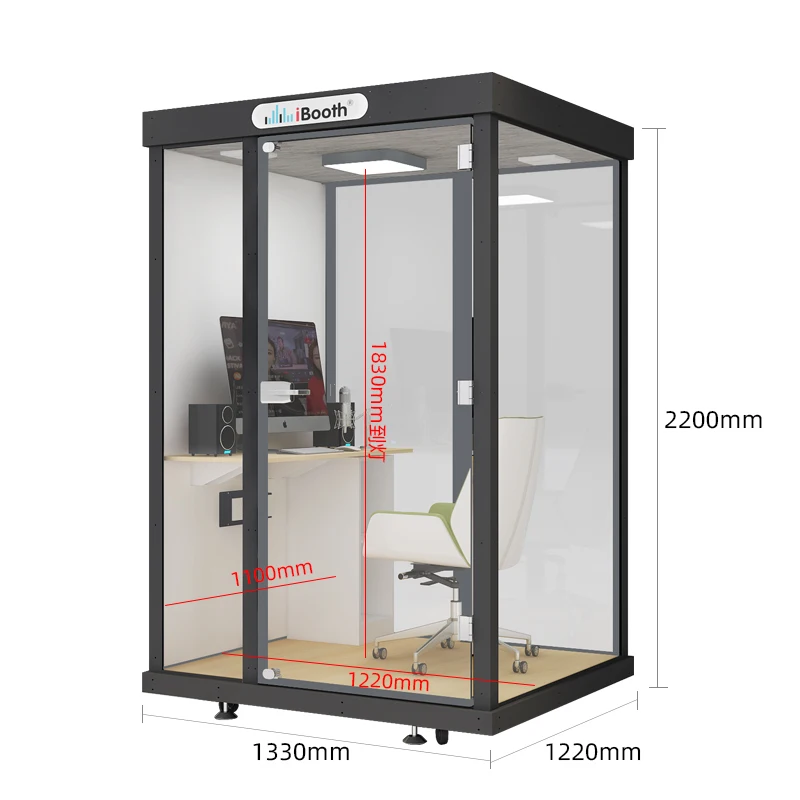

| BLF-02 | 1. External size(cm) | W133×D122×H220 |
| 2. Inner size (cm) | W122×D110×H183 | |
| 3. 1 Wall | 1-layer structure for wall: 12mm thickness soundproof wooden board | |
| 4. 3 glass sides | 8mm tempered glass door. | |
| 5. Lighting | One 36W LED | |
| 6. Power | 110~220V, 50Hz, 50W | |
| 7.Socket & switch | 2 pcs sockets + 1 RJ45 slot+1 double switch | |
| 8. Ventilation | 2 pcs of 12V fan+ 2 air inlets/outlets on the ceiling. | |
| 9. Docoration for the floor | 1 carpet. | |
| 10. Movable wheels | 4 pcs | |
| 11. Fixed struts | 4 pcs | |
| 12. External sound insulation | Test condition: In the 9 square meters acoustics lab,theoretically, outside noise of booth reaches 80~90dB, sound insulation reduce15dB inside. Such as high-frequency vacuum cleaner noise (75~80dB, 500~2000Hz) and low-frequency noise of road car noise (75~80dB, 200Hz). However, in the 400 square meters show room, the sound source outside the soundproof booth is 90-100 decibels at 1 meter distance, and the actual test is to isolate the external regular noises by 32~36decibels. For example, (91.2+ 102.2)/2-61.3=35.4dB. Test tool: decibel meter |
|
| 13. Inner sound insulation | Test condition: In the 9 square meters acoustics lab, theoretically, inner noise reaches 80~90dB, the external soundproof 20~25dB. Infact, in the 400 square meters show room, although there is only one layer of 10mm glass sound insulation structure, the perfect design and reasonable collocation can excellently reduce the booth noise of 26.3~32.05 decibels. For example, (85.7+92.1)/2-62.2=26.7dB. And inner sound insulation is the main function of the soundproof booth. Test tool: decibel meter |
BLF-02 application scenes
Type：home phone booth, portable home office pod, soundproof office booth & etc.
